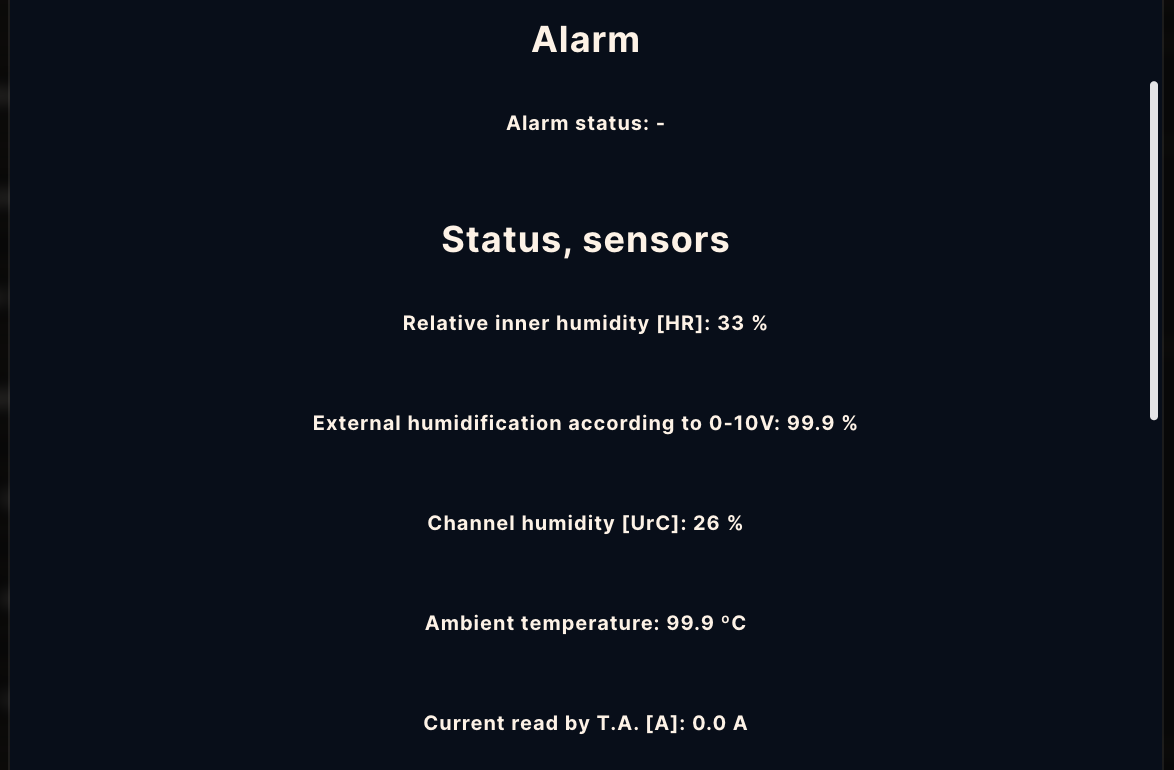

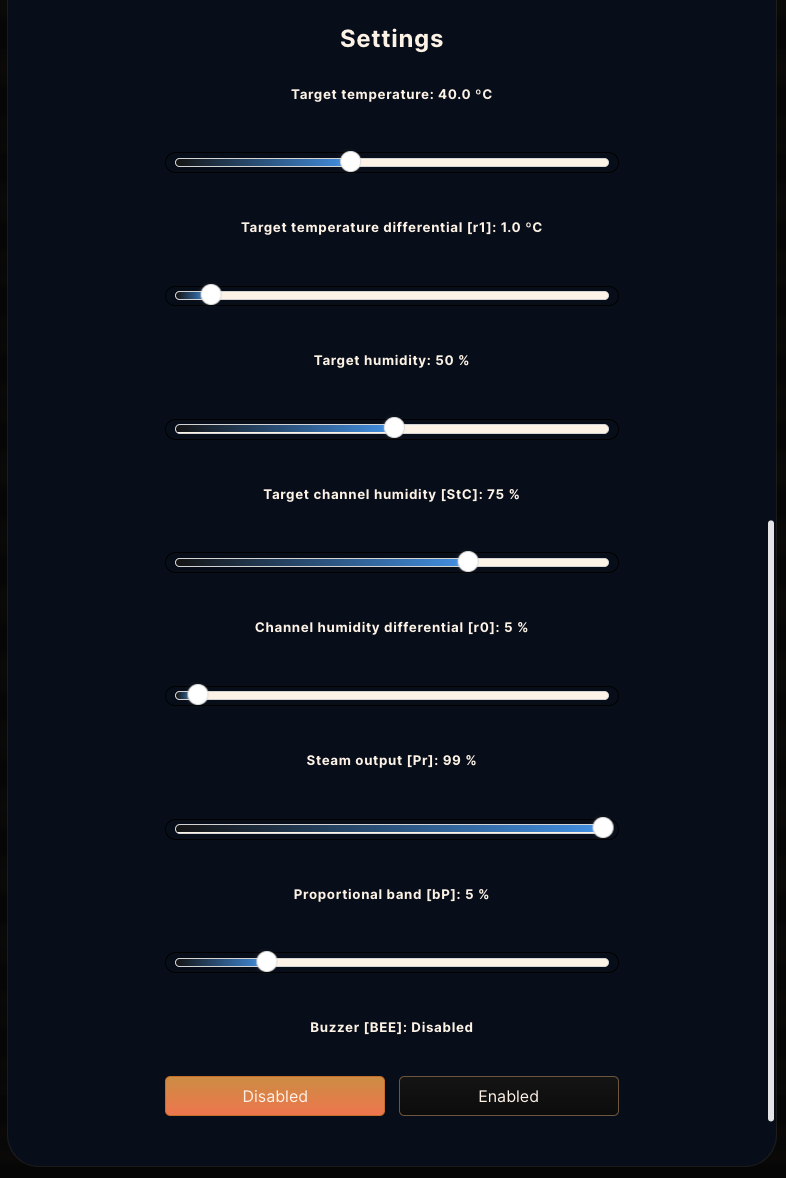

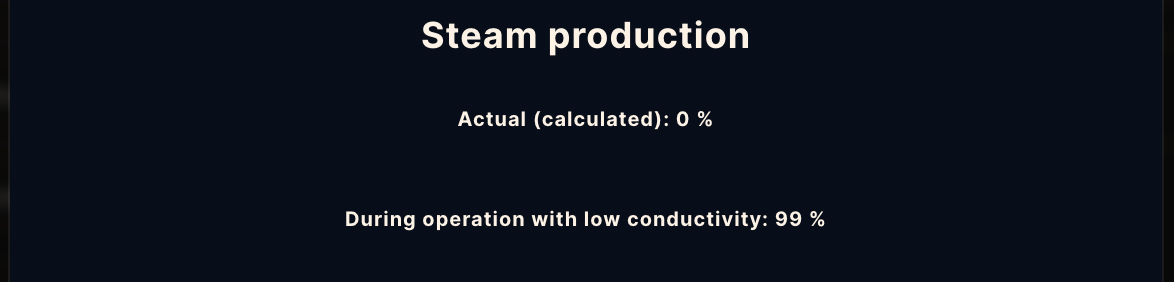

User Interface

Assuming that the correct license key has been successfully specified as the value of the corresponding variable in the QuickApp, 3 childApps have now been created under the original main QuickApp

User levels

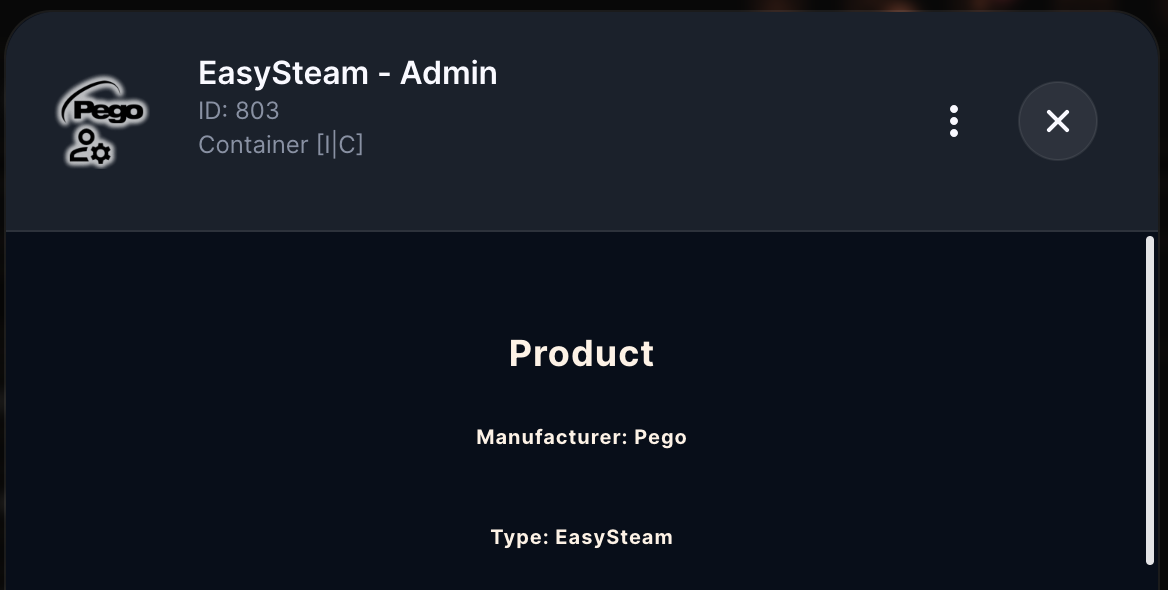

You may have noticed that some device names are suffixed with Guest, User or Admin. This indicates which of the three user levels is recommended for the given QuickApp. Based on these, you can decide which users you give which intervention options, that is, which QuickApps will be visible to which users. Each level (Guest, User and Admin) gives increasing privileges, so everything is available at higher levels that was available at lower levels. Therefore, for example, in a single user configuration, the Admin level is sufficient, the others can be hidden.

You can disable each subsystem before activating the license. If you only want one user level, e.g. because you have a single-user system and only need the Admin level, you can set this in advance in the Main App “Disabled Subsystems” multiselect option.

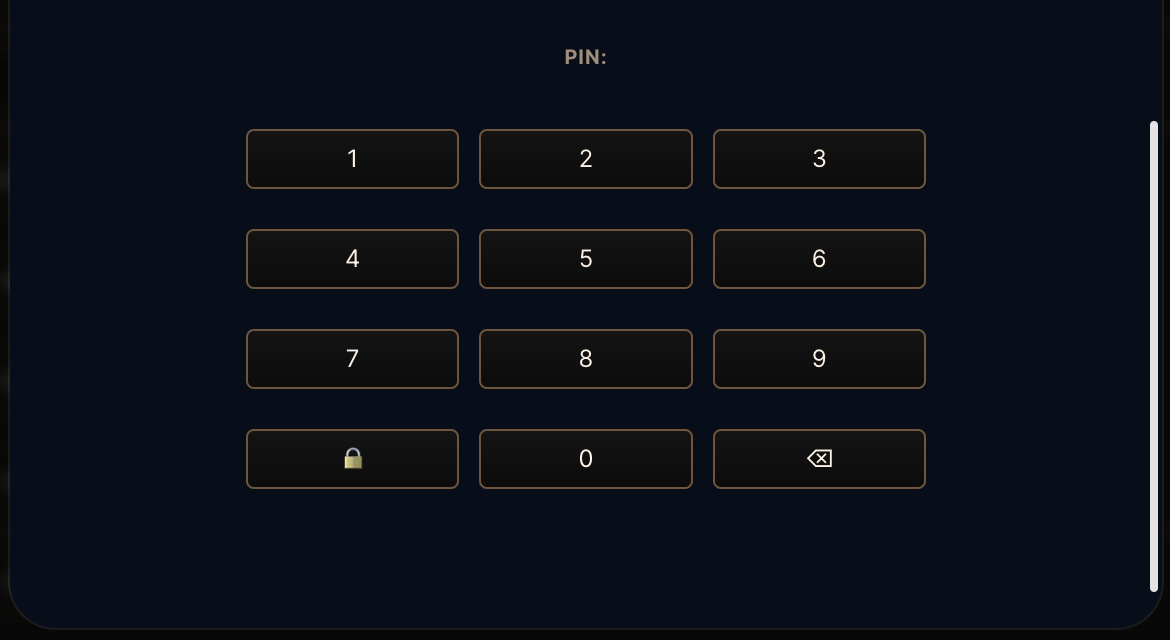

Note: In addition to the above, there are also so-called service subsystems that have sensitive configuration options the unprofessional use of which can lead to damage to the machine. These are hidden behind a service PIN code, preventing the possibility of errors while allowing the technician to use them.

Main App

Here you can find information about QuickApp itself, including version number and licensing status. You can also find licensing information here if you have not yet purchased a license key.

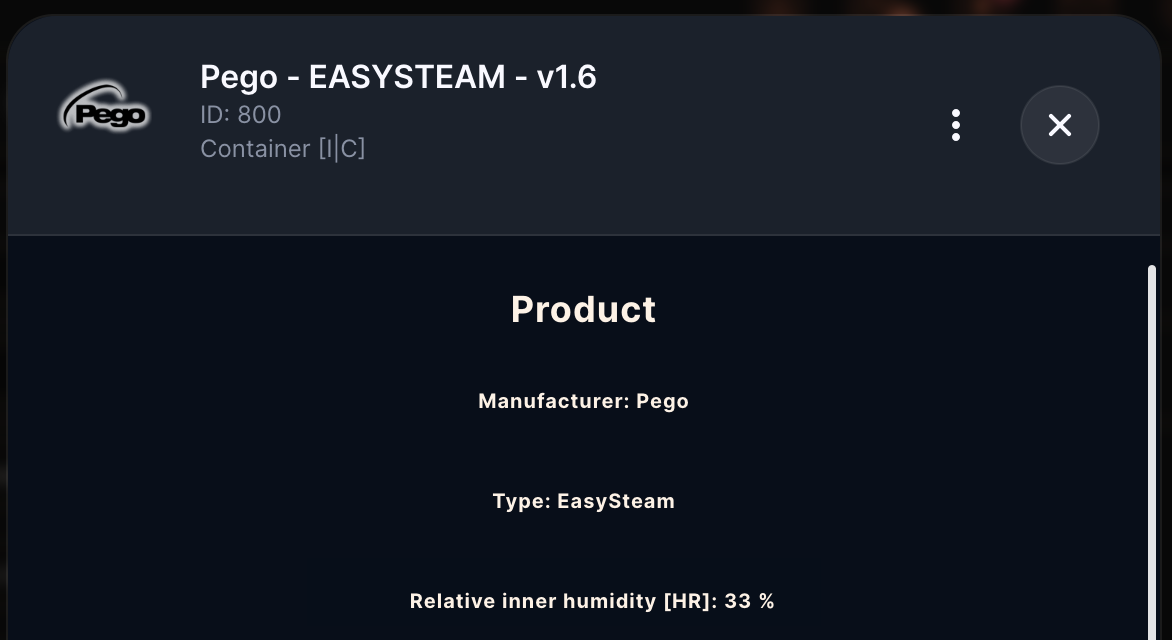

Product info

Information about your device including manufacturer, subtype and a demo value read from your device directly.

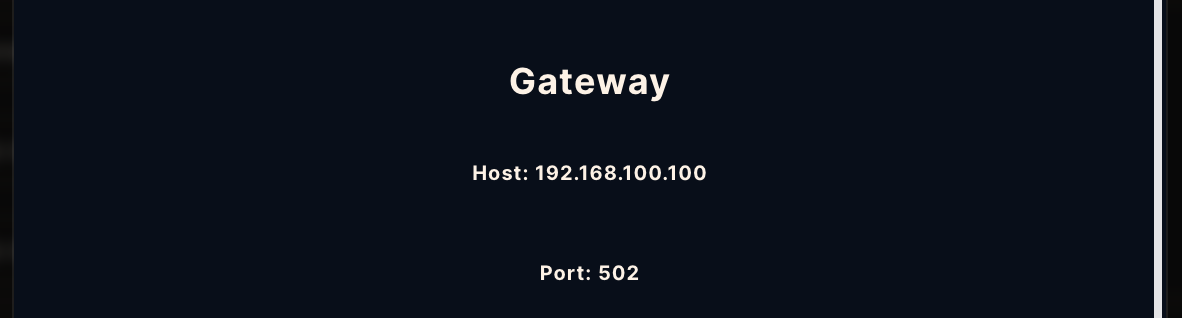

Gateway setup

The Host and Port number you configured in the QuickApp Variables.

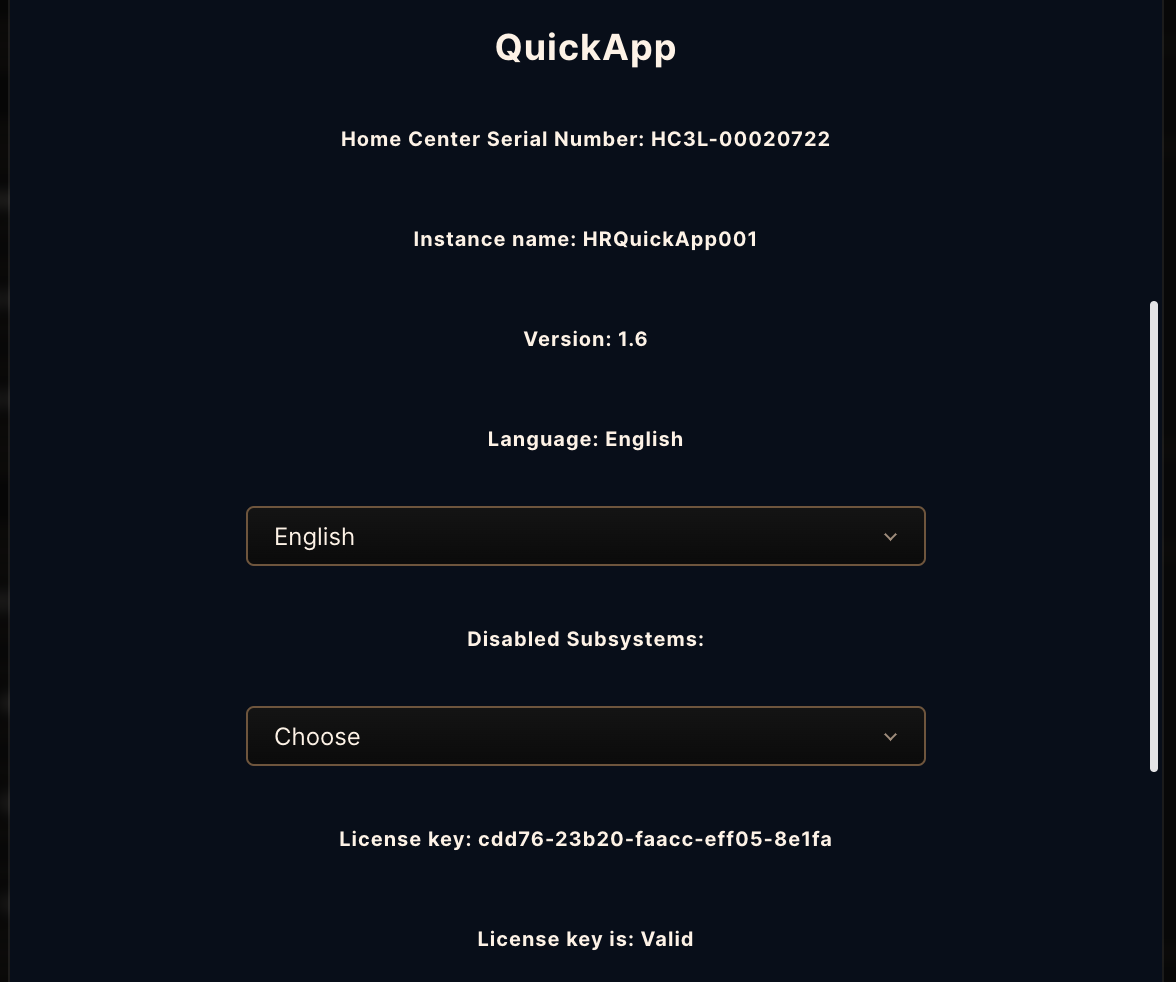

QuickApp Configuration

The Home Center Serial Number and the preconfigured Instance Name is essencial for license key request. You can also see the QuickApp version information and configure app language (coming soon) and choose Subsystems to disabled before activate license. The license key and it’s validity is also shown here.
