Requirements

  1. A Pego EasySteam Humidifier with up-to-date firmware
  2. A correctly installed and configured RS485-TCP Gateway described here
  3. A Fibaro Home Center 3 with software version 5.170.16 or greater.
  4. Connecting all the above to the same network so that they can see each other.

Installation

  1. Download Pego QuickApp.

  2. Log into your Home Center as Admin.

  3. Install the QuickApp:

    a) Go to Settings -> Devices -> Add device

    b) Choose “Other Device”

    c) Upload file with .fqax extension.

  4. Now you can see the installed Quickapp in your device list. Optionally you can upload the icon set, too.

  5. Set the corresponding QuickApp variables to the host IP and port number of your RS485-TCP Gateway.
    a) Variables -> Edit host

    b) Set value (optionally you can also setup other variables)

    c) You have to save the updated variables

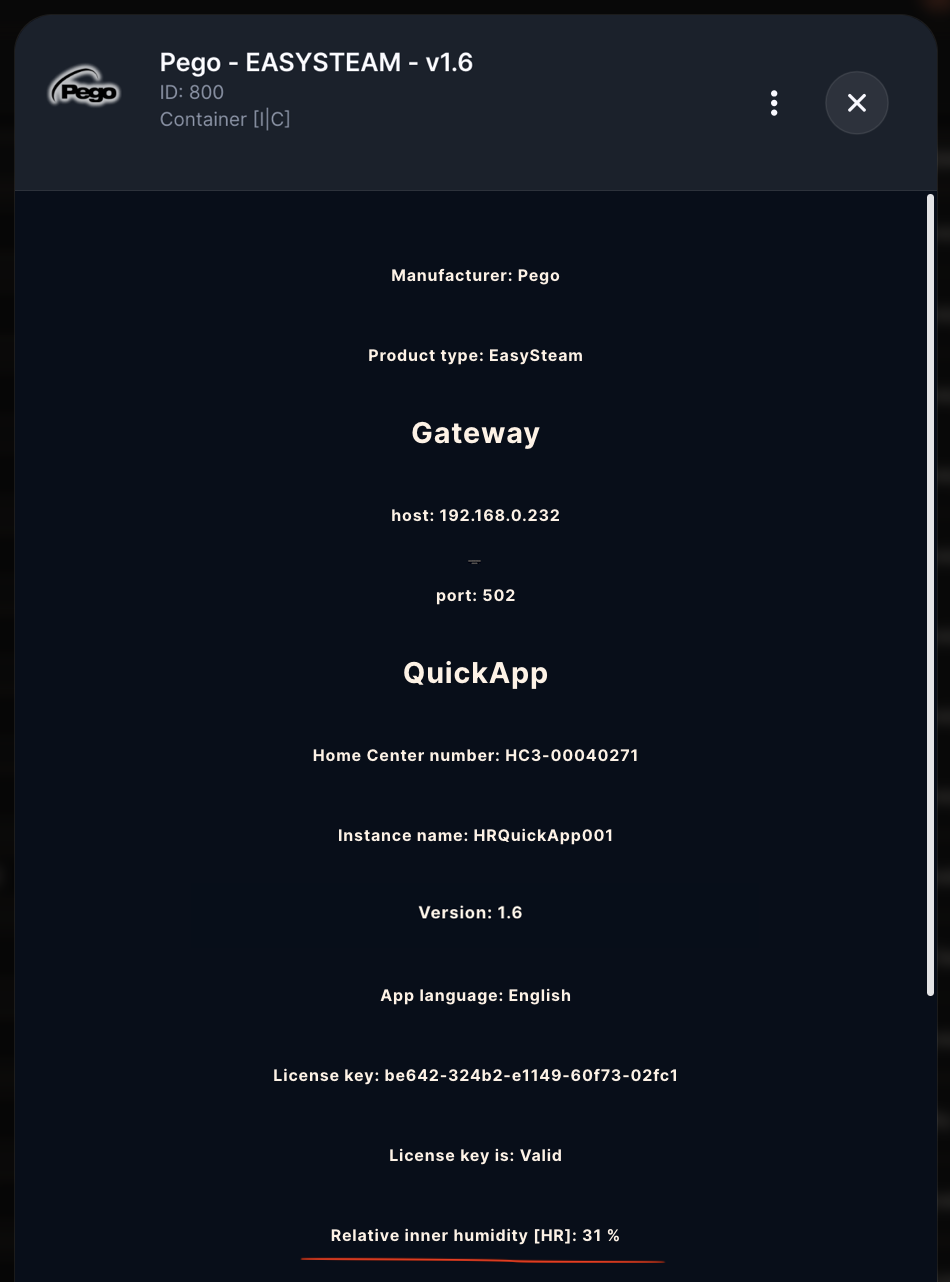

  6. Click on the eye icon to see App Preview and check if the connection between the Home Center and your device has been estabilished correctly. If so, you can see informations retrieved from your Device, such as “Relative Inner Humidity”

  7. If (and only if) you can see the right informations in the preview, the configuration was successful and you can proceed to the next sections.

Optional settings before licensing

  1. If you use multiple instances of this app (e.g. becauseyou have multiple devices connected to the network with one gateway for each), you have to name your app instances differently and every instance have to be licensed seperately. The license key will contain the name of the app, so the final app name must be set before licensing. You can modify app name in the QuickApp app_name variable. If you use only one instance, just leave this unchanged.

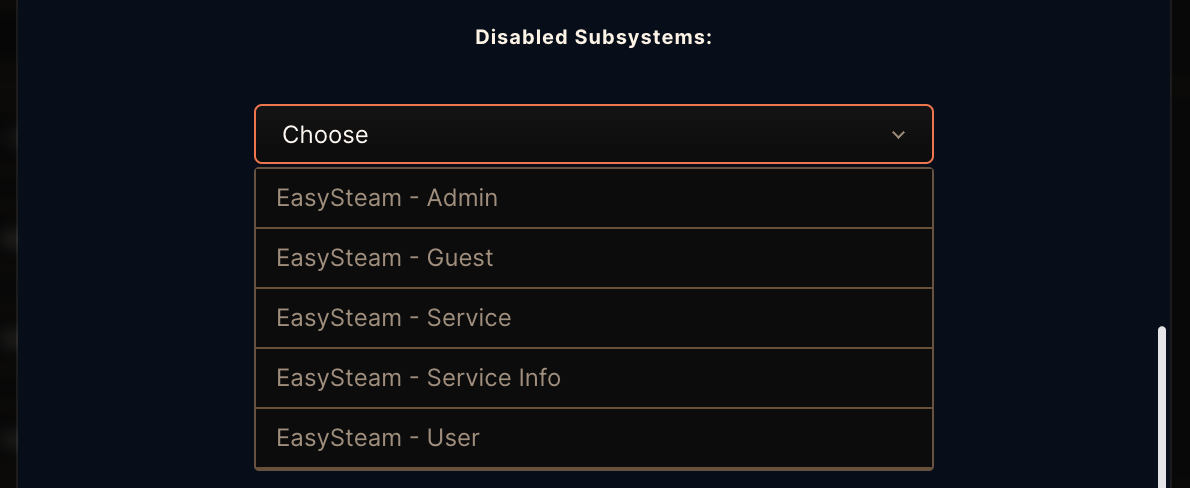

  2. You can disable subsystems on demand before licensing. There is a dedicated selector for this in the Main QuickApp.

Licensing

To access the full range of QuickApp features, you need to request a license key as described here.

User Interface

With the correct license key, the full functionality of QuickApp is available. For more information on how to use the ChildApps created, click here.

Using in Scenes

If you want to use this QuickApp in Scenes, this might be useful reading.
